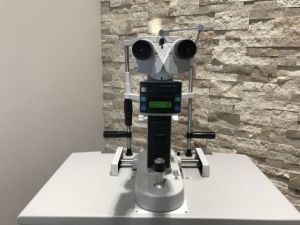

Laserex Ellex 3000LX Yag

Laserex Ellex 3000LX Yag

  • Accurate delivery of energy; there are no complicated adjustments just ‘aim and shoot.’
  • Operational flexibility – posterior offset capability, a wide range of energy selection, burst mode, and dual diode aiming beams result in the treatment versatility required for virtually any indicated clinical procedure.



At Insight Eye Equipment, we guarantee each pre-owned unit is fully-refurbished and provided with warranty. Click the “Add to Quote” button below to begin building your quote and never hesitate to reach out!

  • Accurate delivery of energy; there are no complicated adjustments just ‘aim and shoot.’
  • Operational flexibility – posterior offset capability, a wide range of energy selection, burst mode, and dual diode aiming beams result in the treatment versatility required for virtually any indicated clinical procedure.



Specifications

  • Mode of operation – Q-switch
  • Wavelength – 1064nm
  • Air breakdown – Greater than or equal to 4mJ
  • Mode structure – Fundamental
  • Spot size – 11 microns
  • Cone angle – 16°
  • Pulse duration – 4ns
  • Burst mode – 1, 2 or 3 pulses per burst  (20ms between pulses)
  • Setpoint – Greater than or equal to 0.3 less than or equal to 10mJ, continuously variable
  • Repetition rate – 1.25Hz in single or double pulse mode, 0.66Hz in triple pulse mode
  • Aiming beam – Twin spot 670nm laser diode; intersecting beams with continuously variable intensity; maximum 200µw
  • YAG defocusing system – Continuously variable posteriorly from minimum setting to +250 microns
  • Working distance – 55mm
  • Electrical requirements – 100/240 VAC; 50/60Hz
  • Cooling system – Air convection
  • Unit weight – 59kg / 130lbs
  • Dimensions – Work area 740 x 470mm (29 x 19 in.)
  • Table range – Min: 740mm (29 in.)
  • Max: 945mm (37 in.)
