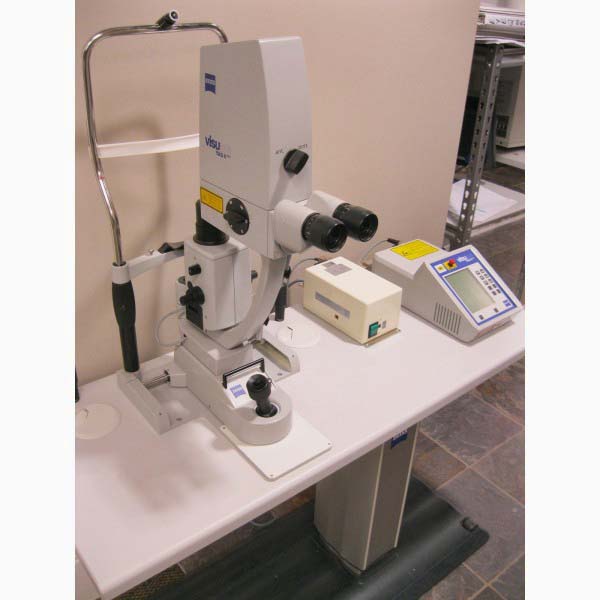

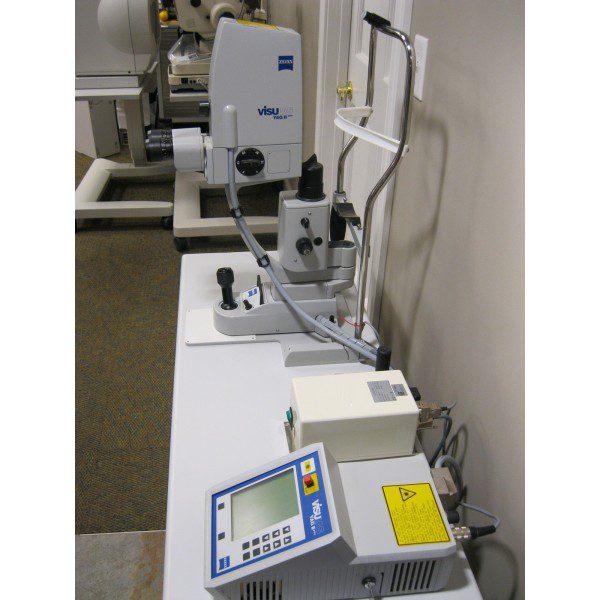

The Zeiss Yag lasers are of excellent quality and are very durable.
- Type (CONFIGURATION) 4-point diode, 670 nm
- Intensity regulation (AIMING BEAM) 5-150 µW in 20 steps
- DIMENSIONS (HXWXD) CM, (IN) (DISPLAY) 62.3x 35 x 40 (24.5 x 13.8 x 15.7);
- 12.8x 16.5 x 31.5 (5x 6.5 x 12.4)
- WEIGHT, kg (lb) (DISPLAY) 11 (24.2)slit lamp, 4.5 (9.9) control unit
- USES (STAINING POSTS) Ophthalmic posterior capsulotomy
- DISPLAYS/CONTROLS
- Energy selection 10levels
- Shot selection: Yes
- Power output: Actual metered
- Shot counter: Yes
- Additional Features: (Alarms, high/low) Accumulated energy (resettable), service
- messages
- Calibration procedure (Interference compensation) Automatic
- Slit lamp (DELIVERY SYSTEM) Zeiss
- POWER REQUIREMENTS VAC 115/230
- Current, a 0.8
- COOLING NEEDS (ENERGY) Air
- Nd:YAG BEAM Operating mode (DISPLAYS/CONTROLS) Q-switched
- Mode structure (Ag beam) Super-Gaussian
- Energy range Single pulse, mJ (DISPLAYS/CONTROLS) 0.2-10; 25 for double
- pulse, 40 for triple pulse
- Length of pulse,ns (Energy range) <4
- Burst, pulses/burst (Energy range) 1-3
- Burst, hz (Repetition rate) 0.25,0.5
- Spot size, µm 10in air
- Cone angle, ° (DISPLAYS/CONTROLS) 16
- Beam actuator (Repetition rate) Joystick,
